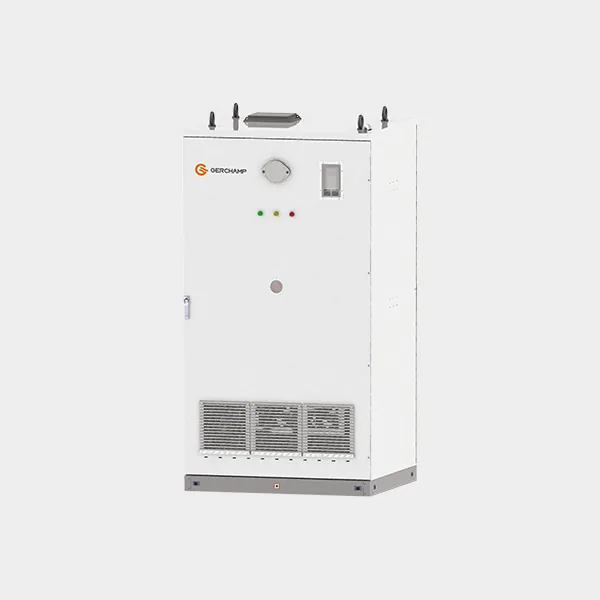

C&I Energy Storage System
HC-CP135E215F
All-in-One 135kW/215kWh
Key Features:
- Ultimate Integration: Compact all-in-one module integrating BMS, PCS, EMS and HV Box with smaller size and lower loss
- Assured Reliability: Top-tier reliability: CE-certified, IP54-rated, multi-safety design and comprehensive protection
- Smart Energy Management: Smart energy management supporting TOU arbitrage, demand control, reverse power limit and remote control
- Diverse Applications: Wide compatibility with external PV inverters; perfect for offices, industrial parks and commercial sites
Technical Parameters
Product Specifications
Complete technical data for the HC-CP135E215F C&I Energy Storage System.
| Parameter | Result |
|---|---|
| Cell type | LFP (3.2V / 280Ah) |
| Nominal voltage range | 672V–864V |
| Nominal capacity | 215kWh |
| Nominal power / voltage / frequency | 135kW / 380VAC / 50Hz |
| Nominal voltage range / max current | 375–415VAC / 213A |
| Total harmonic current distortion | ≤5% |
| Electrical parameter | Nominal charging / discharging power / <0.62P |
| Electrical parameter | Communication protocols / CAN, TCP, RS485, 4G |
| Electrical parameter | EMS strategy / Peak load shaving, demand control, reverse power protection, active & reactive power control, grid/remote scheduling |
| Environmental parameter | Temperature control method / Air-cooling |
| Environmental parameter | Fire suppression system / Aerosol + water fire suppression system, composite detector, sound alarms, explosion venting, accident ventilation |
| Environmental parameter | Protection level / IP54 |
| Environmental parameter | Noise / ≤75dB |
| Environmental parameter | Operating altitude / ≤2000m (derating above 2000m) |
| Environmental parameter | Operating temperature / -20°C ~ 50°C (derating above 45°C) |
| Environmental parameter | Operating humidity range / 0–95% (non-condensing) |
| Environmental parameter | Weight / <2500kg |
| Environmental parameter | Dimension (WHD) / 1180mm × 2200mm × 1300mm |
