G-TIC-Z Nickel-Zinc Battery Management System
G-TIC-Z
G-TIC-Z is designed for comprehensive operation and intelligent maintenance of nickel-zinc batteries. It uses a distributed architecture for real-time monitoring of key parameters including voltage, internal resistance, temperature, and charge/discharge current. The system features thermal runaway early warnings and integrates charging management.
Key Features:
- Real-time Management: Provides accurate and reliable data, eliminates manual maintenance risks
- Comprehensive Monitoring: Full monitoring of key parameters of individual cells and battery strings
- Intelligent Analysis: Performance monitoring and reports for actionable insights
Architecture

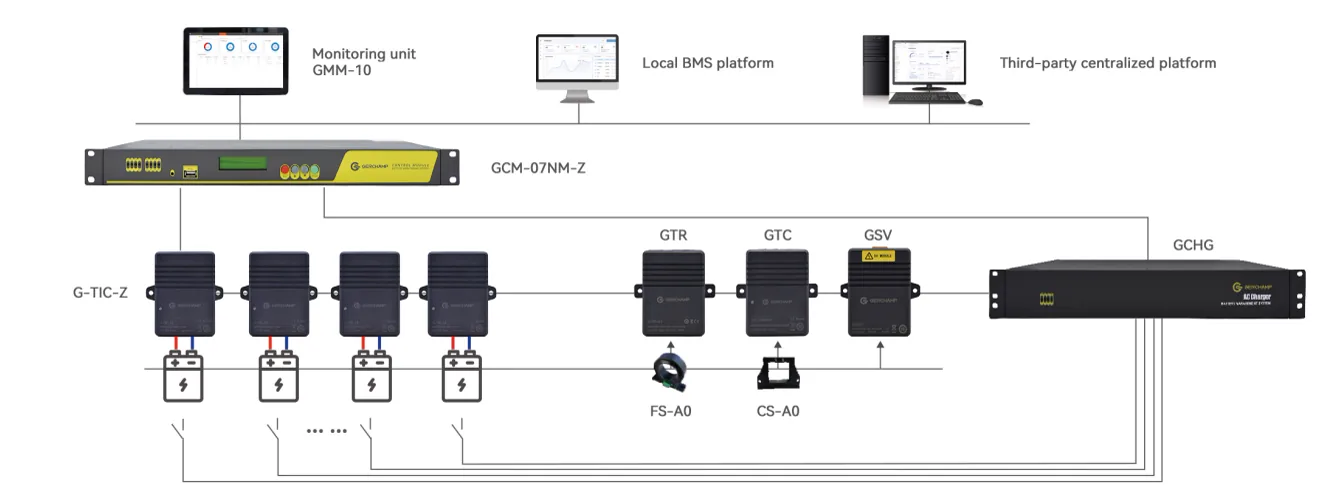

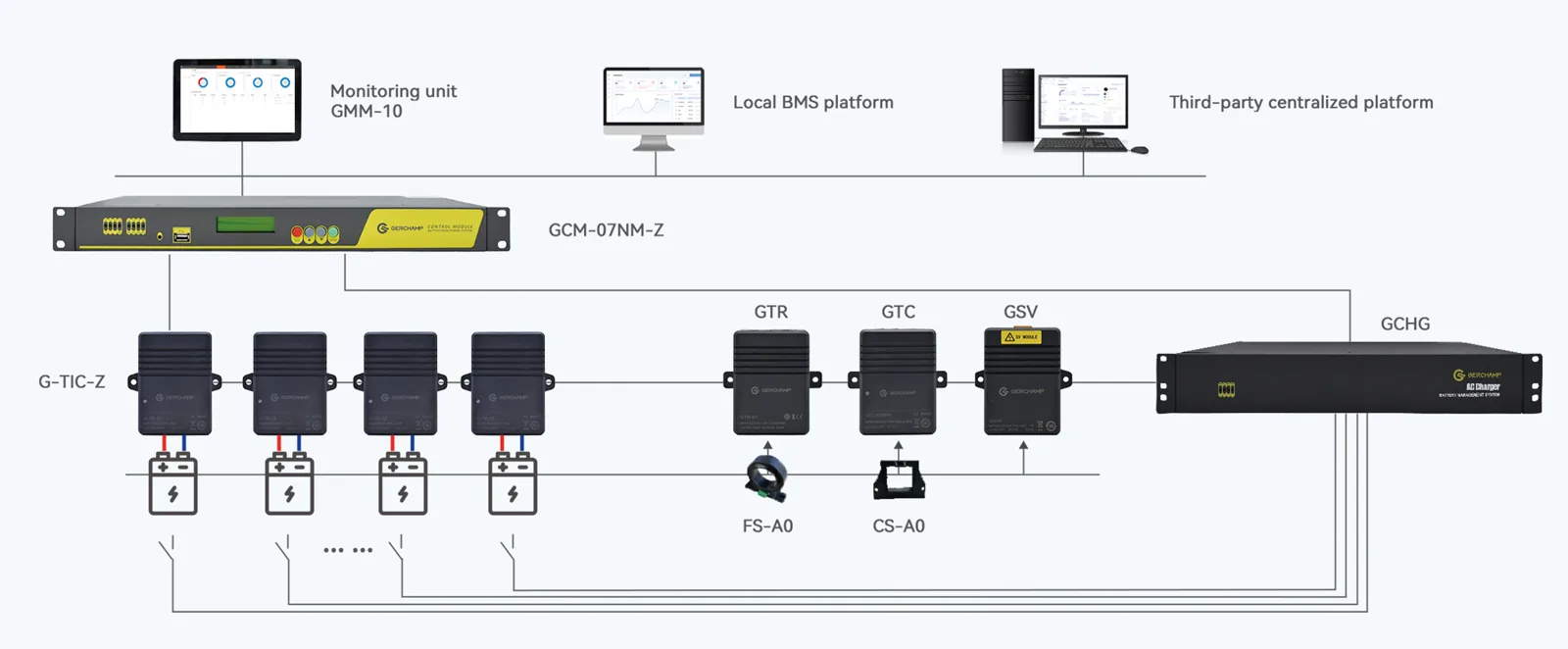

System Architecture
G-TIC-Z distributed architecture for real-time voltage, internal resistance, and temperature monitoring across nickel-zinc battery strings with integrated charging management.
Technical Parameters
Product Specifications
Complete technical data for the G-TIC-Z Nickel-Zinc Battery Management System.
| Parameter | Result |
|---|---|
| MODULE POWER | - |
| G-TIC-Z | Battery 5–16 VDC (reverse protection) · ≤10 mA |
| GCHG | External 100–240 VAC · 120 W rated output |
| GCM-07NM-Z | External 100–240 VAC · 15 W rated output |
| OPERATING ENVIRONMENT | - |
| Operating Temperature | -20 ~ +60°C |
| Relative Humidity | 5 ~ 95% RH |
| Atmospheric Pressure | 80 ~ 110 kPa |
| Altitude | 0 ~ 2000m above sea level |
| SYSTEM PERFORMANCE | - |
| String Capacity | Up to 96 cells per string |
| Data Storage | Built-in 8 GB · >12 months retention · 60 s default interval (adjustable) |
