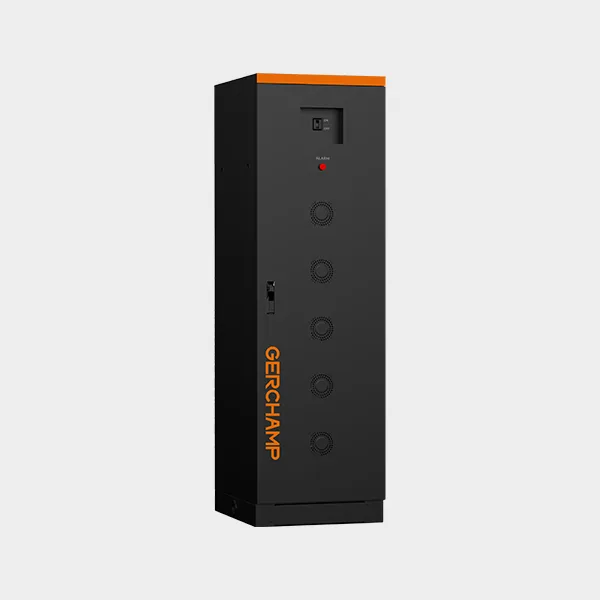

Intelligent Nickel-Zinc Battery Cabinet
BC-3830S15BA0
The Gerchamp BC-3830S15BA0 Nickel-Zinc Battery Cabinet is a high-power UPS battery solution that delivers the same power as legacy VRLA battery systems while reducing footprint and weight by 2–3×, making it ideal for space-constrained deployments and brownfield retrofits.
Powered by Gerchamp’s 8XNFZ38 Nickel-Zinc battery technology and proven Battery Management System (BMS), the system is built on inherently safe aqueous nickel-zinc chemistry. It supports up to 10C discharge rates, is UL 9540A certified, and is resistant to thermal runaway, providing a safer and more sustainable replacement for data center UPS battery systems.
The BC-3830S15BA0 is ideal for AI data centers, colocation and edge data centers, telecommunications, healthcare, finance, manufacturing, and other mission-critical applications.
Key Features
| Technical Parameter | Value / Details |
|---|---|
| High reliability | Open-circuit-free discharge performance |
| Ultimate safety | Pass extreme tests e.g. axe chopping, drilling, heavy crushing, fire exposure with zero fire or explosion, significantly exceeding traditional battery safety standards |
| Wide Temperature Range | Maintain stable performance and high efficiency in extreme environments (-20°C to 55°C), surpassing traditional battery temperature limits |
| Medium discharge rate | Support 10C discharge rates, balancing capacity and power requirements for diverse application scenarios |
| Eco-friendly | Utilize non-toxic materials with >90% recyclability, enabling clean energy closed-loop systems for low-carbon development |
Product Specifications
Complete technical data for the BC-3830S15BA0 Nickel-Zinc Battery Cabinet.
| Parameter | Result | - |
|---|---|---|
| TECHNICAL PARAMETER: BC-3838S, BC-9038S | - | - |
| Product model | BC-3838S | BC-9038S |
| Nominal voltage | 501.6Vdc | 501.6Vdc |
| Charging Current Range | 11.4~38A | 27~90A |
| Battery Option | 8XNFZ38 | 8XNFG90 |
| Energy Storage | 19kWh | 45kWh |
| Maximum Discharge Current | 380A | 900A |
| Single String Battery Configuration | 38 batteries/string/cabinet(38S1P) | 38 batteries/string/cabinet(38S1P) |
| BMS | Monitoring cell voltage, temperature, IR and charge/discharge current, high accuracy SOC and SOH | Monitoring cell voltage, temperature, IR and charge/discharge current, high accuracy SOC and SOH |
| Power Supply | 100-240 VAC 50/60 Hz standard. 600VDC redundant supply options | 100-240 VAC 50/60 Hz standard. 600VDC redundant supply options |
| Data Communications | Ethernet, RS485, LAN, dry contact, MODBUS/RTU, TCP and SNMP protocols | Ethernet, RS485, LAN, dry contact, MODBUS/RTU, TCP and SNMP protocols |
