Ubit U Space Manager
Ubit

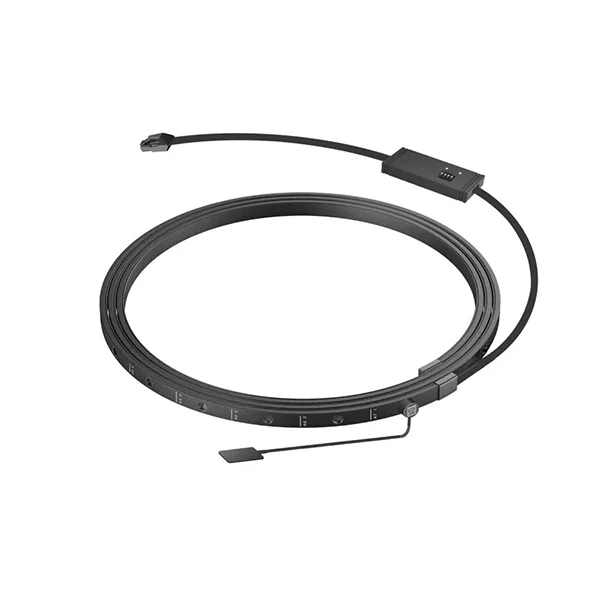

The Ubit series U Space Manager is designed for cabinet asset management, paired with U-position electronic tags for unique asset identification. Uploads real-time asset location data to the central platform, supports precise tracking, automated inventory, and cabinet capacity calculation. Integrated U-position indicator lights reflect assets status, providing clear on-site guidance to support efficient online and offline operations.
Key Features:
- Easy Installation: Magnetic mounting, smallest footprint, seamless integration in any cabinet.
- Stable and Reliable: Integrated flexible PCB and ring topology for higher reliability.
- Operational Visibility: On-site LED lights for instant asset location and status visibility.
- Flexible Expansion: Supports RFID tags, door heatmaps and extra environmental sensors.
Architecture

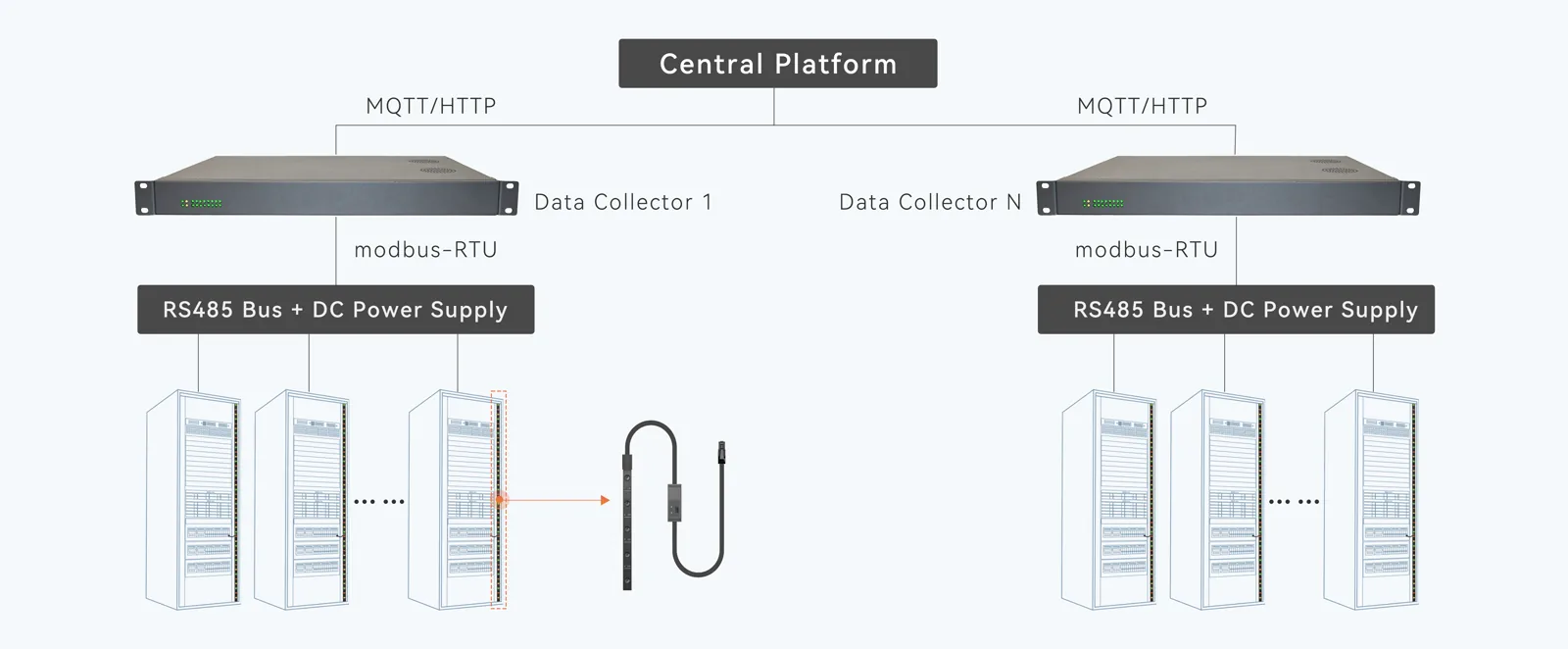

System Architecture
Ubit central platform communicates via MQTT/HTTP to distributed data collectors using modbus-RTU over RS485 bus for real-time rack-level monitoring.
Technical Parameters
Product Specifications
Complete technical data for the Ubit U Space Manager.
| Parameter | Result |
|---|---|
| Dimension of controller | 65mm25mm10mm |
| Dimension of the rack unit detection strip | 16mm*6.5mm, lengths: 42U, 47U, 53U (customizable) |
| Material | ABS plastic |
| Color | Black |
| Rack unit indicator light | Color: red, blue, purple |
| Rack unit indicator light | Mode: steady on, blinking, rapid flashing |
| Installation method | Magnetic attraction, no sticker required, can withstand a tensile force of no more than 8N |
| Flexibility | Bendable, with a minimum bending diameter of 400mm |
| Printing | Each rack unit is printed with forward and reverse rack unit numbering and a rack unit divider line |
| Temperature and humidity | Quantity / 3 |
| Temperature and humidity | Range / Temperature: -10°C~65°C, humidity: 0%~100%RH |
| Temperature and humidity | Accuracy / Temperature: ±0.5°C, humidity: ±3%RH |
| Communication port | RS485 |
| Connector type | RJ45 |
| Communication protocol | Modbus RTU |
